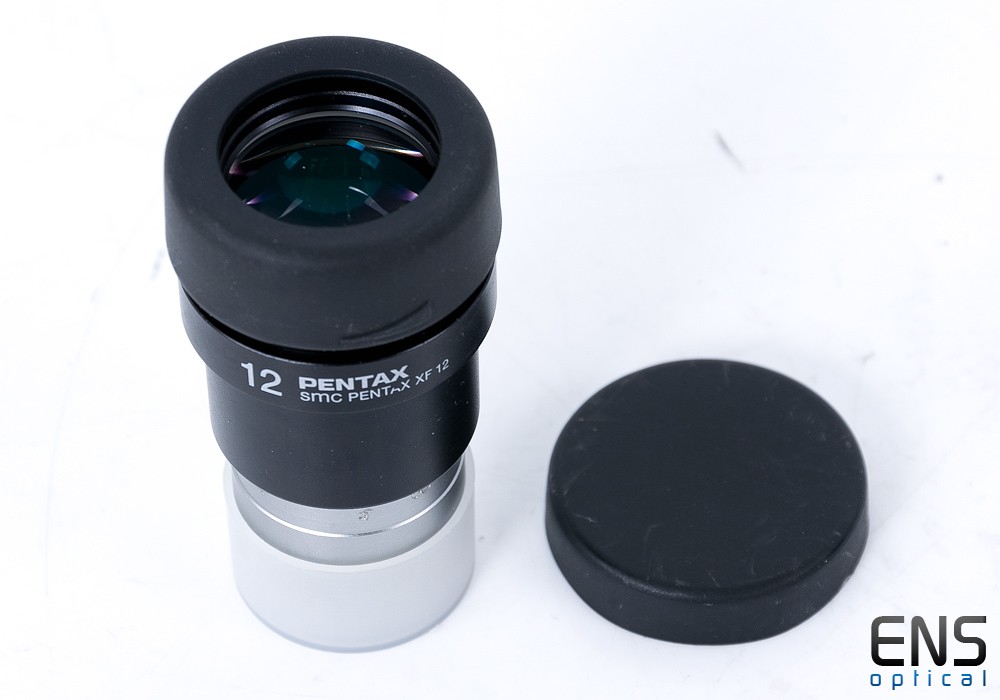

Pentax SMC XF12 12mm Wide Angle Eyepiece lanthanum glass (1.25")

Brand: Pentax | Product Code: Pentax SMC XF12 12mm | Availability: In Stock
Price: £113.00
Qty:     - OR -   Add to Wish List
Pentax SMC XF12 12mm Wide Angle Eyepiece lanthanum glass (1.25")
Pentax SMC XF12 12mm Wide Angle Eyepiece lanthanum glass (1.25")


Good clean used condition.

Featuring premium optical components, a wide 60° field of a view, and generous 18mm eye relief for comfortable glassing, the compact SMC XF 12mm Wide Angle Eyepiece is designed for use with Pentax 65mm, 80mm, and 100mm spotting scopes. This 12mm fixed focal length eyepiece yields 52x magnification with the PF-100ED, 43x with the PF-80EDA, 42x with the PF-80ED, and 32.5x with the PF-65EDA II and PF-65ED II. Extra-low dispersion lanthanum glass elements provide a balanced image with minimal aberrations, while fully multi-coated air-to-glass surfaces and partially coated laminated surfaces avoid reflection for optimal light transmission. A light-shielding diaphragm further reduces internal reflections for a bright, high-contrast image.

The eyepiece is constructed to Japanese Industrial Standard Class 4 for water resistance. It is not to be used underwater, but will easily withstand light rain or dew. Its diameter is the American standard of 1.25", so it can be used in other scopes or telescope focusers, and it offers a 30.5mm adapter mounting thread under the removable eyecup.

Fits 1.25" Pentax Spotting Scopes
52x with PF-100ED Spotting Scope
43x with PF-80EDA Spotting Scope
42x with PF-80ED Spotting Scope
32.5x with PF-65EDA II & PF-65ED II
60° Apparent Angle of View
Extra-Low Dispersion Lanthanum Glass
Fully Multi-Coated
18mm Eye Relief
Waterproof & Fogproof

Compatibility :

Pentax PF-100ED, PF-80EDA, PF-80ED, PF-65EDA II, PF-65ED II spotting scopesOptical Performance :
  • Wide 60° field of view
  • Long 18mm eye relief accommodates eyewear
  • 52x magnification with PF-100ED
  • 43x magnification with PF-80EDA
  • 42x magnification with PF-80ED
  • 32.5x magnification with PF-65EDA II and PF-65ED II
Construction :
  • Extra-low dispersion lanthanum glass
  • Fully multi-coated on surfaces that come into contact with air
  • Partially coated laminated surfaces
  • Light-shielding diaphragm further reduces internal reflection
  • Weatherproof construction (JIS Class 4-rated)
  • 1.25" diameter
  • 30.5mm adapter thread under eyecup
