Details
Description
Unused - new open box
Details from the web below:

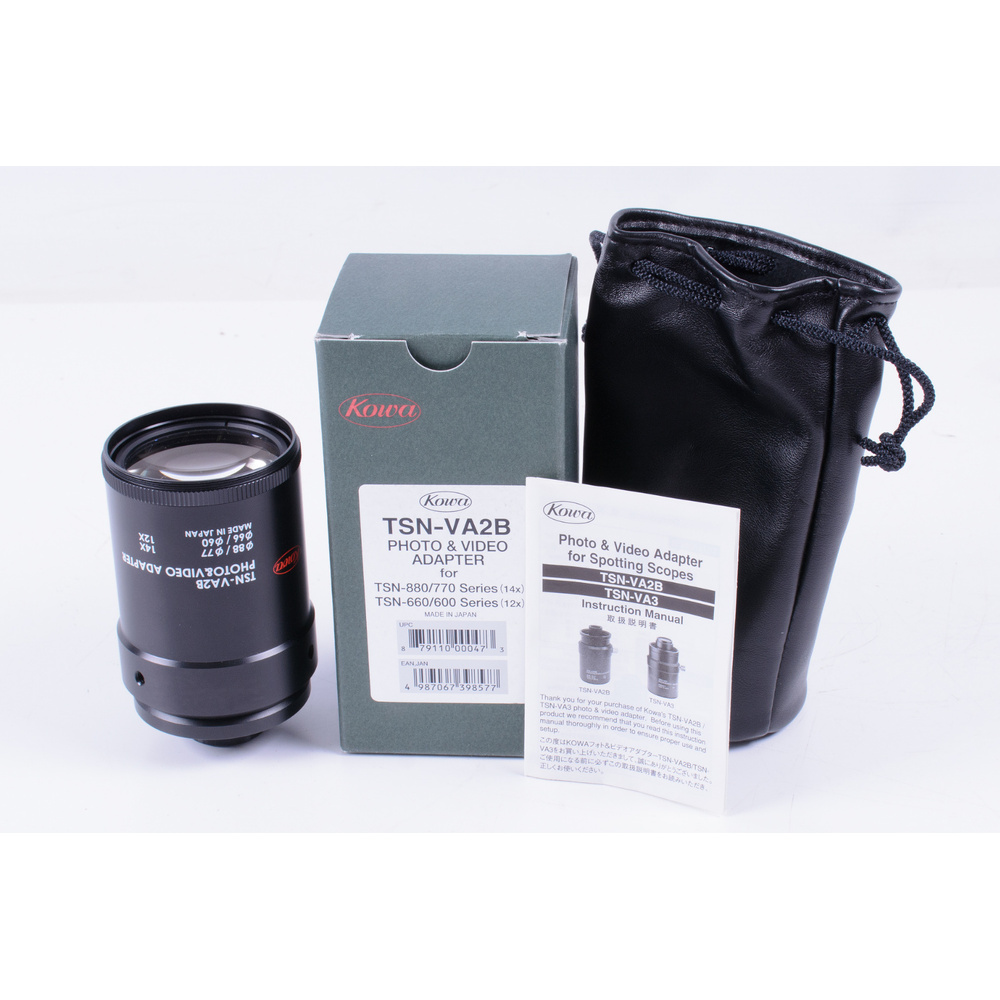

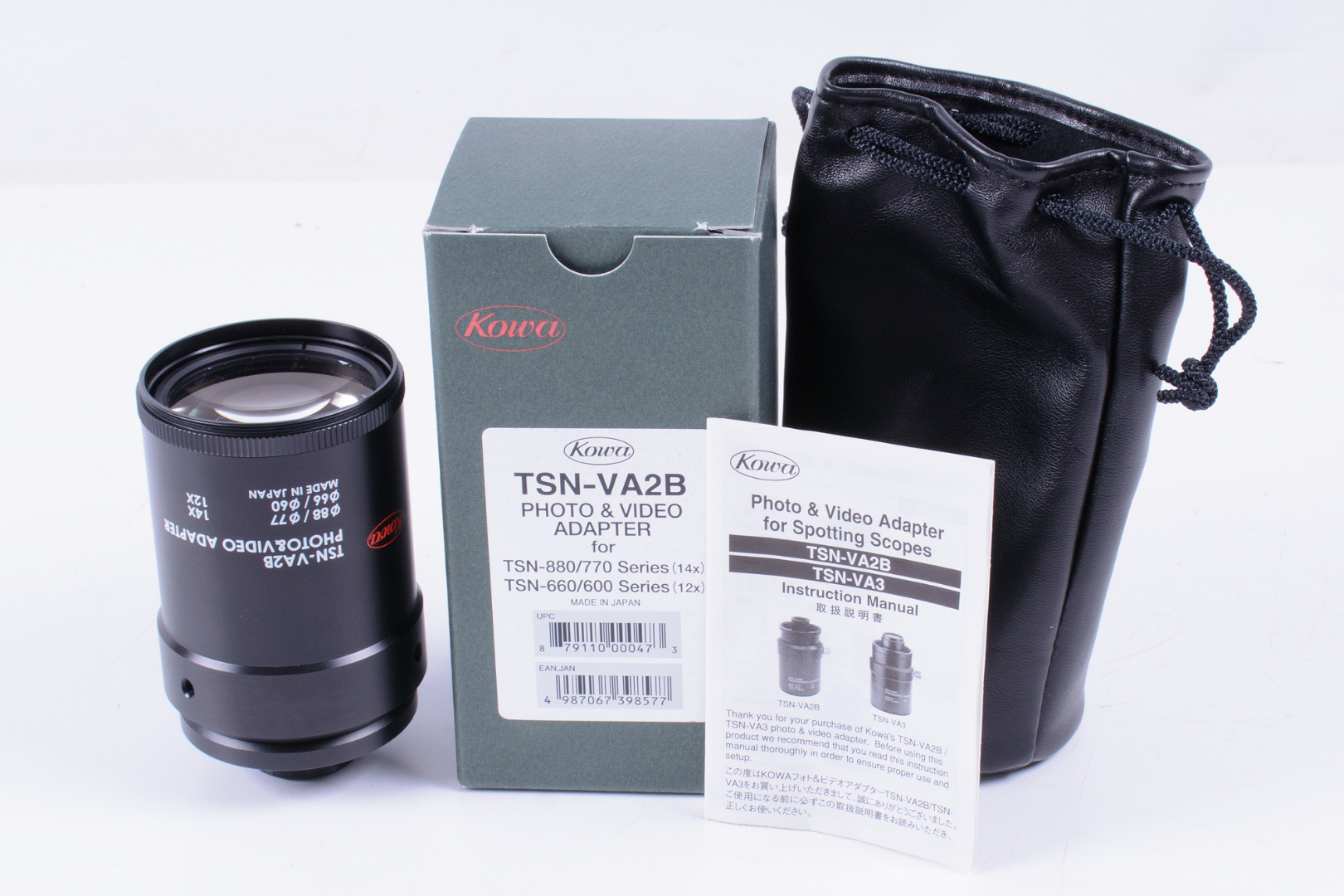

The Kowa TSN-VA2B is a digiscoping adapter that is not used in
conjunction with an eyepiece. With this digiscoping adapter no eyepiece
is used but everything is in this adapter. This adapter uses a
consistent beam of collimated light for use by video cameras.
The TSN-VA2B has a built-in 14x magnification when used with the TSN-880
or TSN-770 series of spotting scopes and a 12x magnification when used
with the TSN-660 and TSN-600 scopes. The digiscoping adapter can be
attached directly to the 88/77mm scopes as an eyepiece, but the
66mm/60mm scopes require the TSN-CR3 adapter between scope and eyepiece.
Use a TSN-AR Camera Adapter Ring, sold separately, to connect the
TSN-VA2B to your video camera. The extremely long eye distance of 100mm
makes it possible to operate almost any camera without vignetting.
14x magnification with an angle of view of 1.97° on 88mm / 77mm scopes
12x magnification with an angle of view of 2.3° on 66mm / 60mm scopes
TSN-660 and TSN-600 require TSN-CR3 adapter
TSN-AR Camera Ring adapter required for connection to the camera's filter wires
