Atomic Pier Range Gamma - Designed for Harmonic Drive Mounts WD20 AM3 AM5 AM7
Evolution should never stop - Atomic piers is a modern take on a Jurassic idea!
Astronomy has changed a lot in the last 5 years, we have evolved from huge heavy EQ mounts like the EQ6 EQ8 CEM120's etc, to the later generation harmonic drive mounts that can weight as little as 4kg. Piers up until now have been solely designed for older style mounts rather than how we image now, Atomic piers intend to change this with our new exciting range, beginning with the "Gamma" pier
To that end, this pier was designed in conjunction with well known UK pier designer to work with modern systems, at the same time maintaining the needed strength/rigidity whilst still being light/compact enough to be posted worldwide using a standard courier rather than having to go on a pallet.

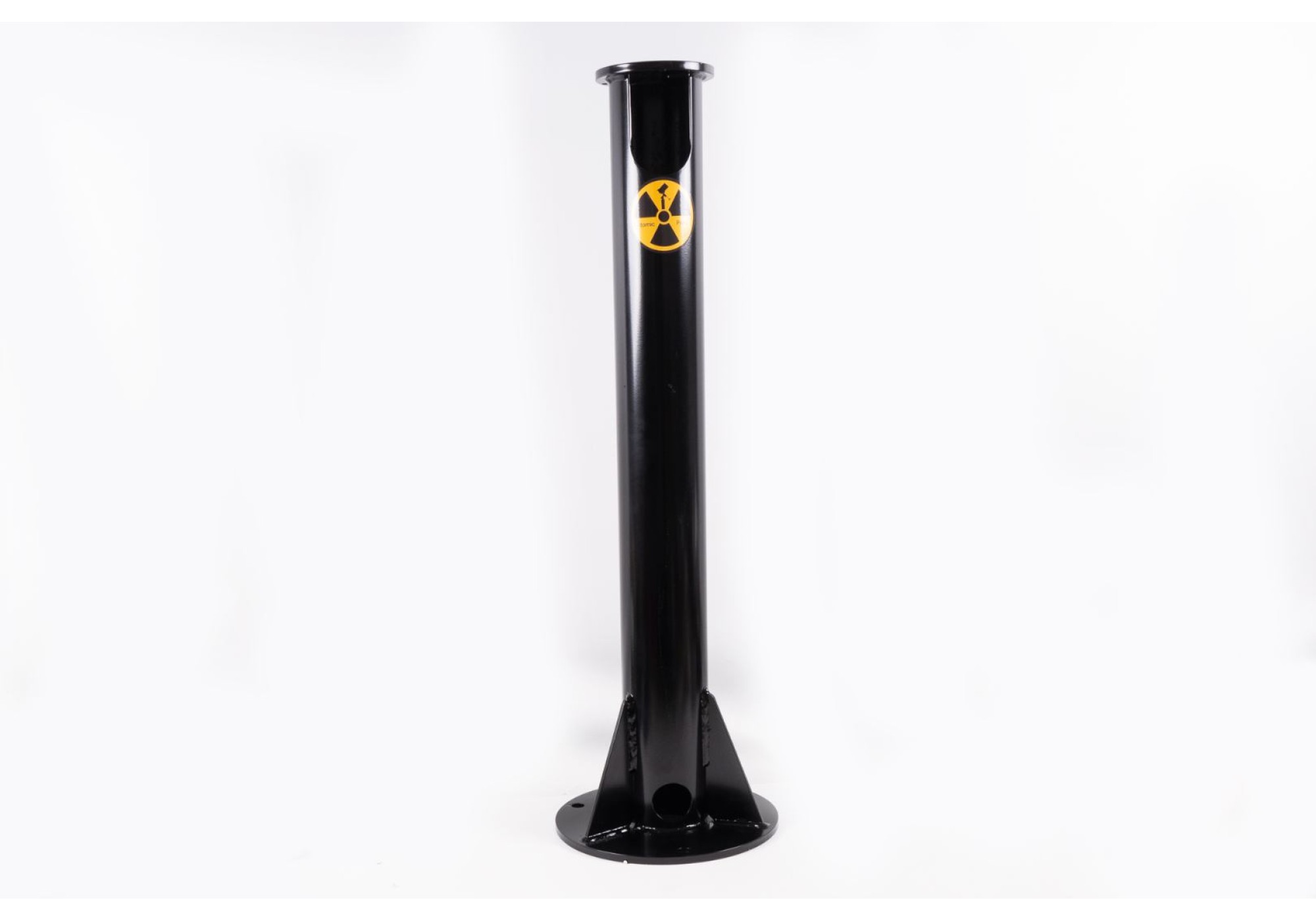

The Gamma pier
- Pier is approx 920mm High
- Designed from the ground up for modern harmonic drive mounts, as well as other style mounts up to NEQ6 size

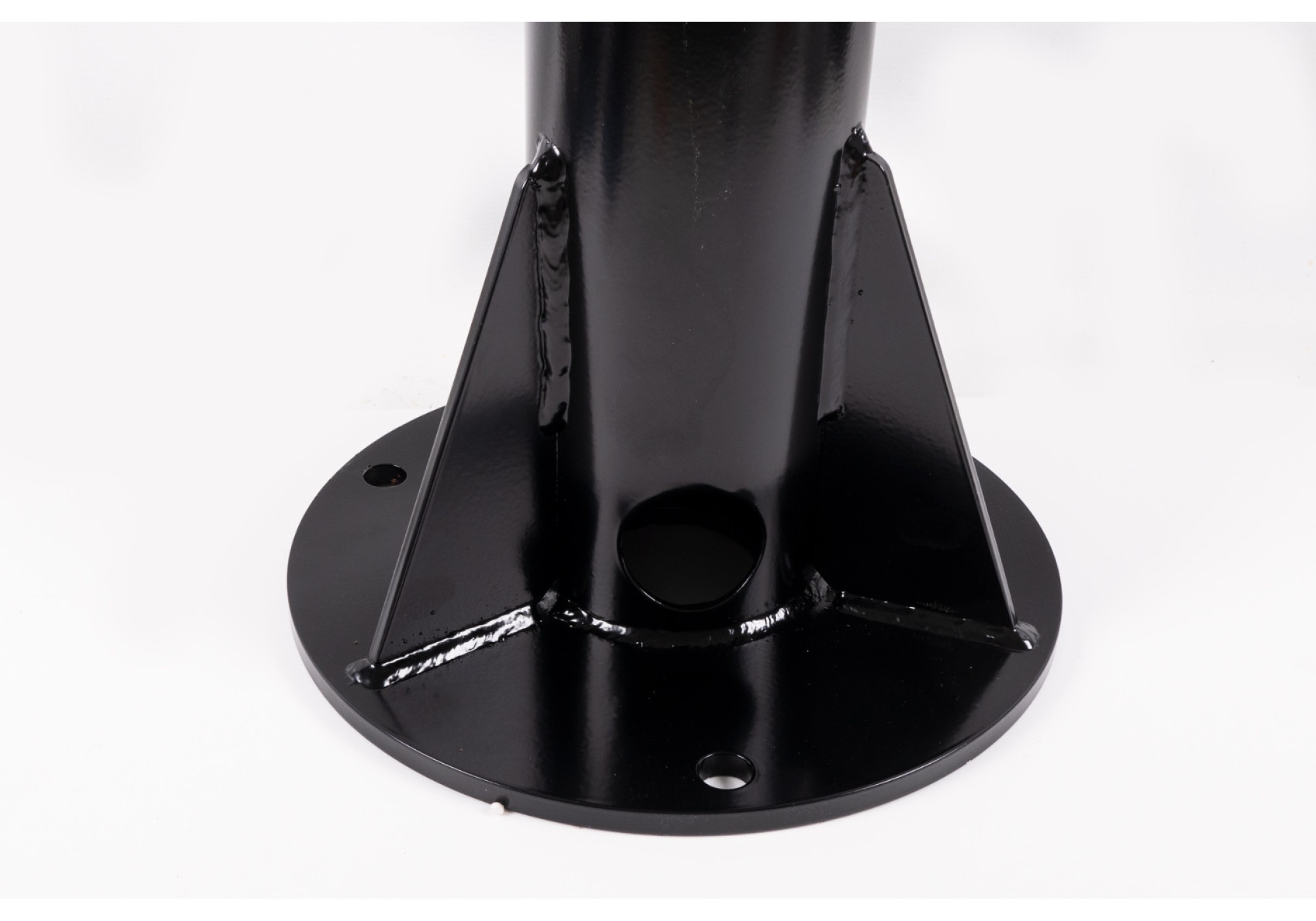

- welded fins for rigidity and vibration damping
- The base is roughly 300mm diameter
- 3x 16mm holes for chemical or raw bolt anchors
- Hole in the baseplate for through cabling
- Hole to base of tube for easy cable management

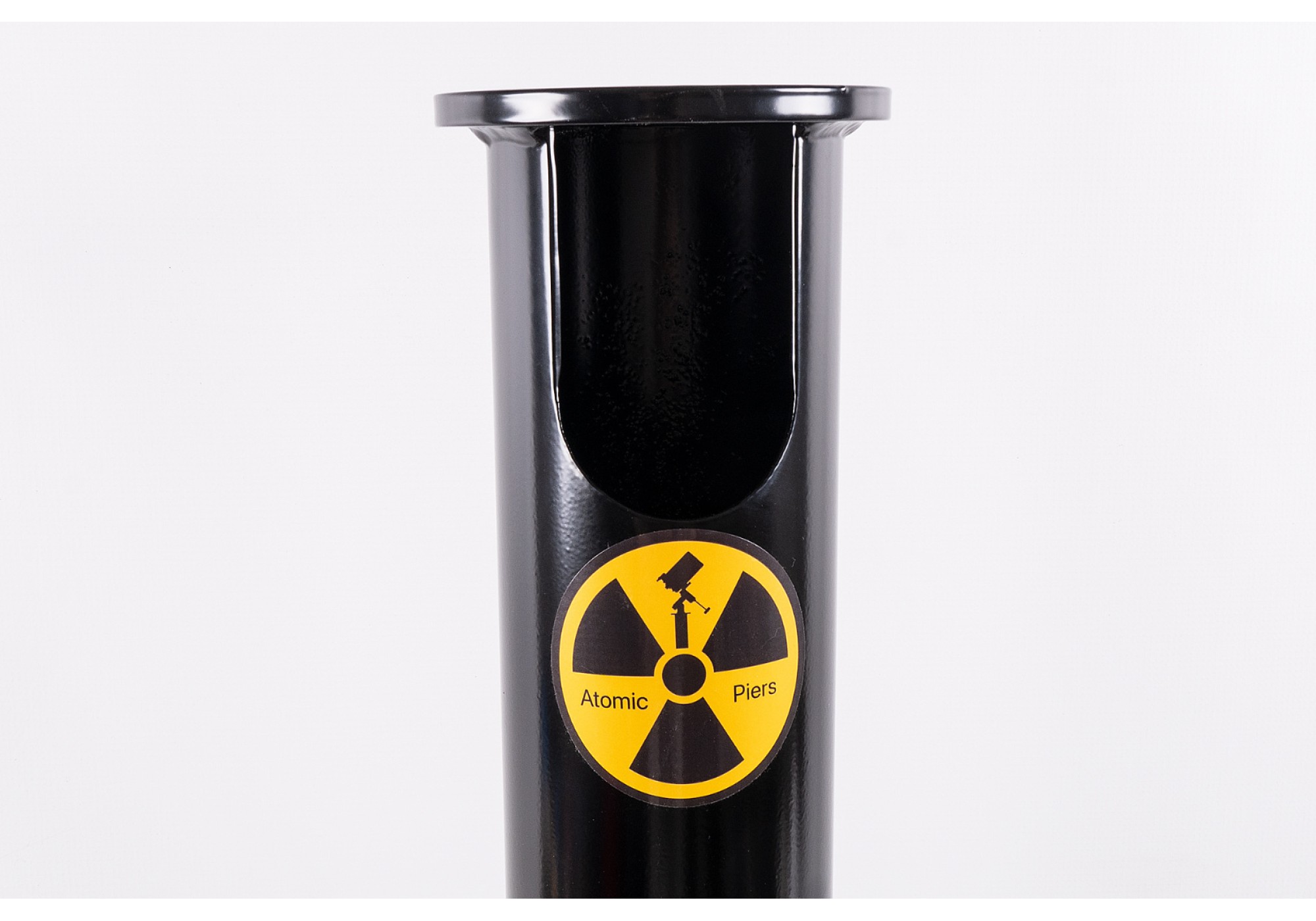

- Owls nest to the top for easy pier plate connection and cable routing

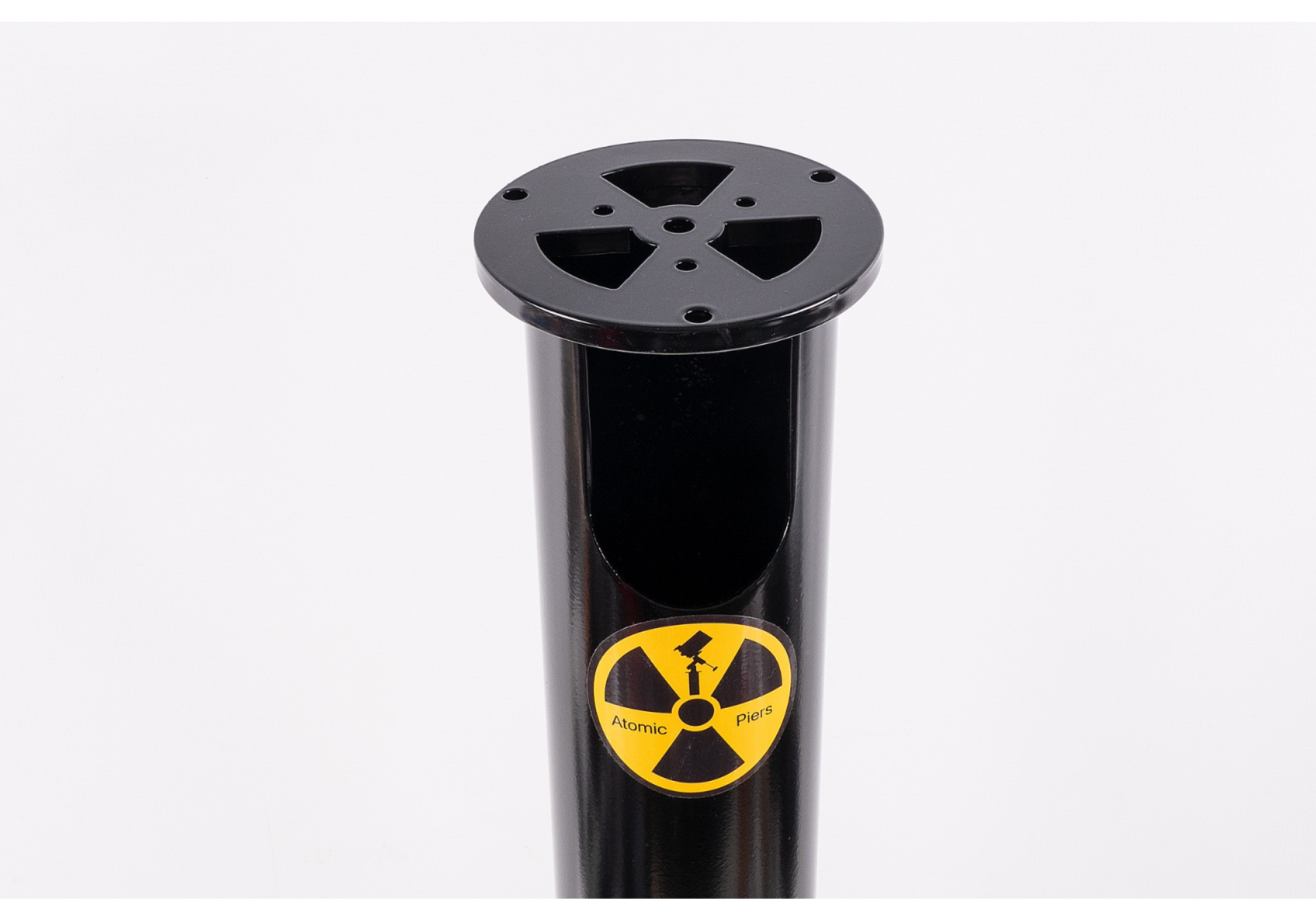

- Our radiation design top plate allows connection to ZWO and most other common pier extensions as well as a range of different piers adapters using standard Meade hole fixing positions
- 15kg net weight so can be sent with a standard courier
- Powder coated black for a tough resilient finish
- Perfect for remote as well as home observatory use, due to the myriads of cabling and other features to prevent cable snags & wiring issues
If you live outside the UK I have used our standard up to 20kg shipping rate for postage, some countries I may have to contact you for a surcharge due to volumetric courier pricing systems which are out of my control. So, please take it as a "guide" rather than a definitive costing, if in doubt please contact us beforehand for a quote or better still arrange your own courier :)
Parcel dimensions are 990x320x320mm & 18kg & we are more than happy for you to collect and save on postage!
Alpha & Beta piers to follow soon, watch this space.....
Nb the aluminium pier adapter or anything else is not included, it's just the pier
